MC series aluminum housing single-phase capacitor-start asynchronous motors, with latest design in entirety, are made of selected quality materials and conform to he IEC standard.
MC motors hav good performance, safety and reliable operation, nice appearance, and can be maintained very conveniently. while with low noises, lttle vibration and at the same time of light weight and simple construction. High starting torque, perfect starting performance, generally the multiple of the starting torque can up to 3.0 times.
These series motors are suitable for the occasion where big starting torque and small starting current, such as air-compressors, pumps, refrigerators, medical apparatus, and many other machines needing ull-load start.


Operating conditions
Ambient temperature: -15 °C<θ<40 °C
Sea level: not exceed 1000m
Rated voltage: 土5%

ML Technical Parameters

ML Shape and installation dimensions

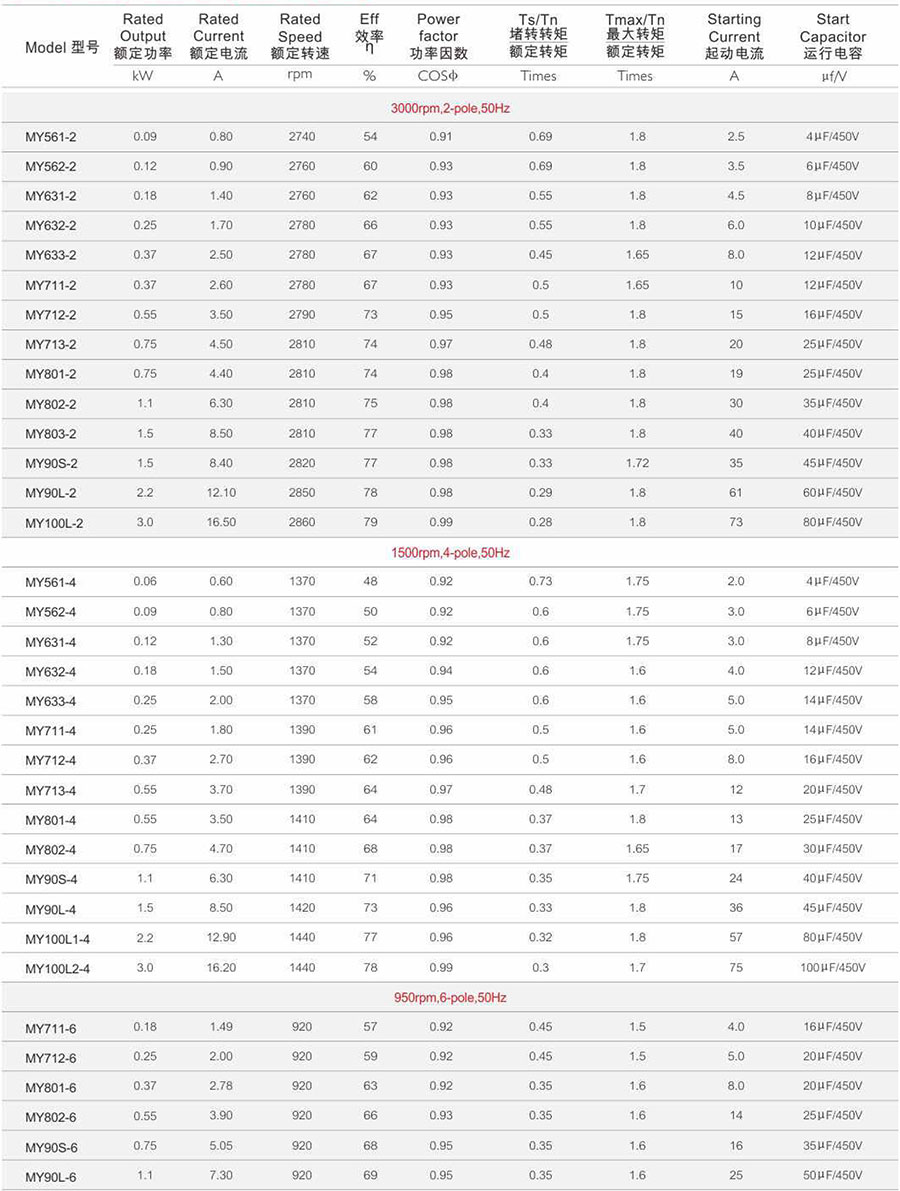

MY Technical Parameters

MCTechnical Parameters

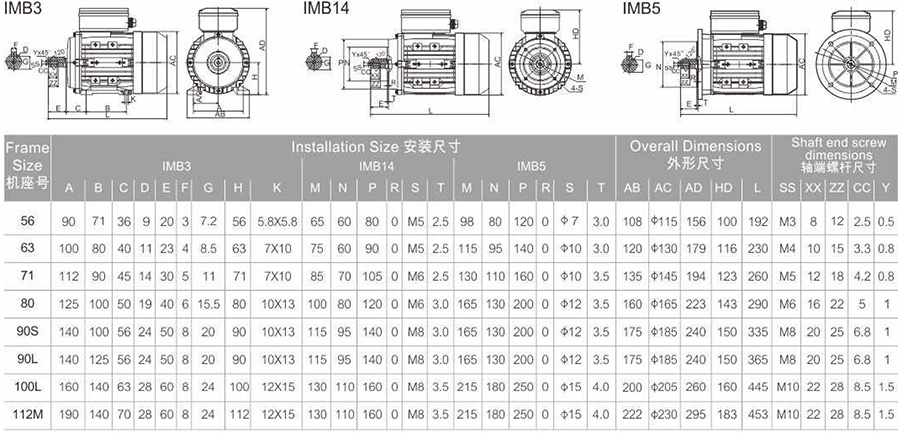

MC Shape and installation dimensions
